Tiara Yachts 3500 Open - main image

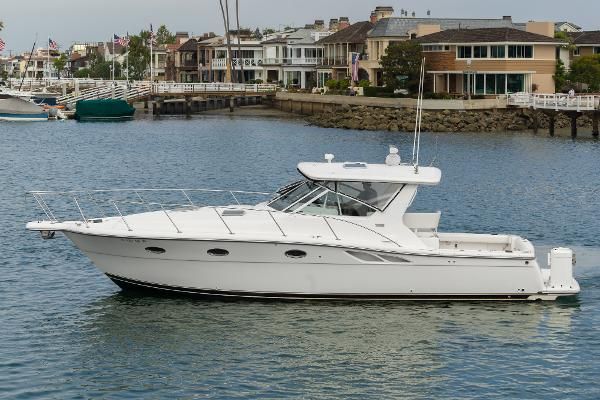

2002 Tiara Yachts 3500 Open

location icon Newport Beach, California
Year 2002
Length 35 ft
Builder/Manufacturer Tiara Yachts
Price
$185,000

This 3500 Tiara is equipped with all the bells and whistles. A forward full-size berth with bulkhead and privacy door separates you from the main cabin. Galley and U- shaped seating area with adjustable table.  Factory hardtop with isinglass enclosure. Cockpit is set up for lounging in the sun or fishing offshore.  Engines serviced in 2022 and serviced the entire cooling system with new heat exchangers and aftercoolers.  Fresh bottom paint, props balanced, replaced spare shaft seals, replaced zincs, and hull buffed and waxed.

Specifications

Year Built 2002
Category Power
Length Overall 35'6 ft
Beam 13'3 ft
Cabins 1
Construction Fiberglass
Hull ID SSUR4241D102
Deadrise Angle 18 °
Min Draft 3'3 ft
Engines 2
Total Engine Power 740 hp
Cruising Speed 25 kn
Maximum Speed 30 kn
Fuel Tanks 1
Fuel Tank Cap. 360 gal
Water Tanks 1
Water Tank Cap. 70 gal
Holding Tanks 1
Holding Tank Cap. 30 gal
Displacement 14,000 lb

Engine 1 Specifications

Make: Cummins
Model: 6BTA 5.9
Fuel: Diesel
Engine Power: 370hp
Type: Inboard
Engine Hours: 1100
Engine Location: Port

Engine 2 Specifications

Make: Cummins
Model: 6BTA 5.9
Fuel: Diesel
Engine Power: 370hp
Type: Inboard
Engine Hours: 300
Engine Location: Starboard
Description

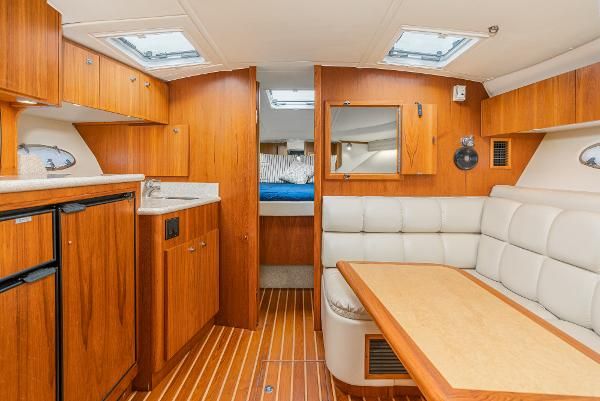

This 3500 Tiara is equipped with all the bells and whistles. A forward full-size berth with bulkhead and privacy door to separate you from the main cabin.  Port side galley with 2-burner range, microwave, sink, and fridge/freezer. On the starboard side is a U- shaped seating area with adjustable table.

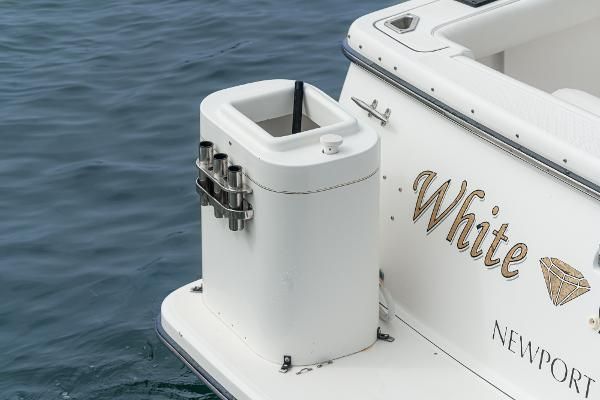

The exterior is equipped with a Tiara Factory hardtop with isinglass enclosure, upgraded electronics, seating on the upper helm area.  The lower cockpit is set up for lounging in the sun or fishing offshore.  Hot/cold shower, swim step bait tank, seating, and lots of storage.

The engines have been serviced in 2022 - serviced the entire cooling system with new heat exchangers and aftercoolers.

Shipyard in January 2022 - bottom paint, props balanced, replaced spare shaft seals, replaced zincs, and hull buffed and waxed.  LOA with pulpit: 40'8"

Galley
  • Microwave
  • 2-burner cooktop
  • Nova Cool Fridge/freezer
  • U-shaped seating with adjustable table
  • Teak and holly cabin  sole
Electronics / Electrical

New Electronics in 2018:

  • 2 x Simrad 12” Multifunction displays
  • 4-foot open array radar
  • Chirp transducer
  • Icom M506
  • Group 31 AGM Batteries x 5
  • Marine stereo
Engine and Mechanical
  • Cummins 6BTA 5.9 370 HP diesels (Port: 1100 hours/ Starboard: 300 hours)
  • 5kw Westerbeke Generator (800 hours)
  • November 2017: Starboard engine replaced with new, crated Cummins factory recon.
  • Port engine oil and filter change.
  • June 2022: New aftercoolers, and heat exchangers, new transmission coolers, new belts.
  • New water heater, fresh water shower in cockpit, bait tank and plumbing for swim step connections.
  • Diesel heater system
  • Vacuflush head
Maintenance and Upgrades 2017 - 2022

November 2017: Starboard engine replaced with new, crated Cummins factory recon. Port engine oil and filter change. Raw water pump replaced. Heat exchanger and after cooler removed, cleaned and serviced. Engine pre-heater replaced. Generator serviced. All work performed by Oceanos Marine Solutions Ltd. in Vancouver, BC.

February 2018: White Diamond delivered from Vancouver, BC to Basin Marine Ship Yard, Newport Beach, CA. Bottom prepped and painted, props installed, removed and replaced transducer, replaced all zincs with new, buff and wax entire boat.

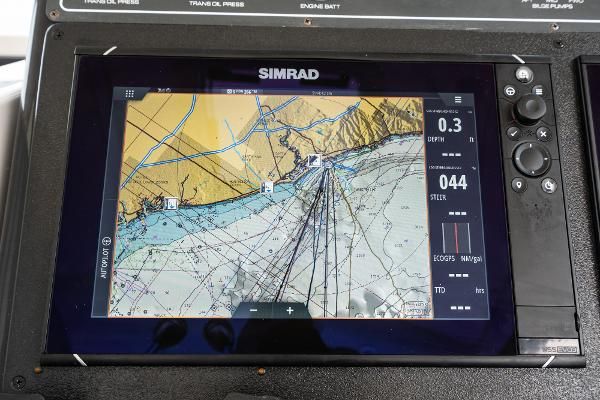

  • All new electronics (2018) including 2 x 12” Simrad NSS12 Evo3 multi-function displays.
  • Simrad Halo 4 Open Radar Array and Pedestal.
  • Simrad NAC-2 Autopilot Bundle
  • Simrad Chirp Xducer
  • Simrad AIS Transceiver w/integrated GPS
  • ICOM M506N2K VHF
  • All new antennas.
  • New windlass relay.
  • Replaced all stereo speakers in salon and on bridge.
  • All new (2018) AGM 31 house and starting batteries (5).
  • New 6-gallon water heater, 1 gallon accumulator tank and both freshwater pumps (2018).
  • New cockpit hot/cold shower (2018)
  • Complete boat detail inside and out (2018).
  • Removed and serviced/repaired Raritan ice maker.
  • Changed out engine zincs.
  • Serviced engine Racors.



2019/2020:

  • Replaced coaming pads in cockpit with new.
  • Replaced anchor road (140’) and chain (200’).
  • Serviced/Repaired both tachometers.
  • Oil and filter change on main engines and generator.
  • Replaced all fuel lines (blue) on port engine.
  • Replaced short hose/clamps on exhaust tube from port engine.
  • Replaced air filter (port engine).
  • Replaced impeller (port engine).
  • Engine room detailed.
  • Replaced fuel solenoid on generator



2021:

  • Replaced oil pressure switch on generator.
  • Cleaned sea strainer on generator.
  • Replaced raw water hose on generator pump to heat exchanger.
  • Replaced raw water hose to port engine.
  • Replaced saltwater wash down hose.
  • Replaced float switches on bilge pumps.
  • Cleaned/exercised shower sump float switch.
  • Cleaned port and starboard sea strainers on main engines.
  • Flushed port heat exchanger.
  • Removed/rebuilt/replaced port starter motor.
  • Replaced original plastic fitting with brass adaptor for freshwater hose feeding ice maker.



January 2022:

  • Hauled boat at Basin Marine.
  • Repainted bottom, replaced all zincs, remove/replaced thru hull.
  • Installed new fuel vent.
  • Installed spare lip seal on port shaft.
  • Pulled both props, straightened and balanced (Wilmington Propeller).
  • Buff and wax hull.
  • Oil and filter change on both mains and generator.
  • Changed all Racors.
Remarks

PRELIMINARY SPECIFICATIONS

Exclusions

All personal gear; artwork; loose items; galley gear; CD's; clock & barometer sets; charts; fishing equipment; tools; spare parts; supplies & items not specifically listed on equipment list specifications sheet.

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
